Inspection Data Analysis

Inspection data is a valuable tool for analyzing the integrity of the equipment. We can help you in the following areas.

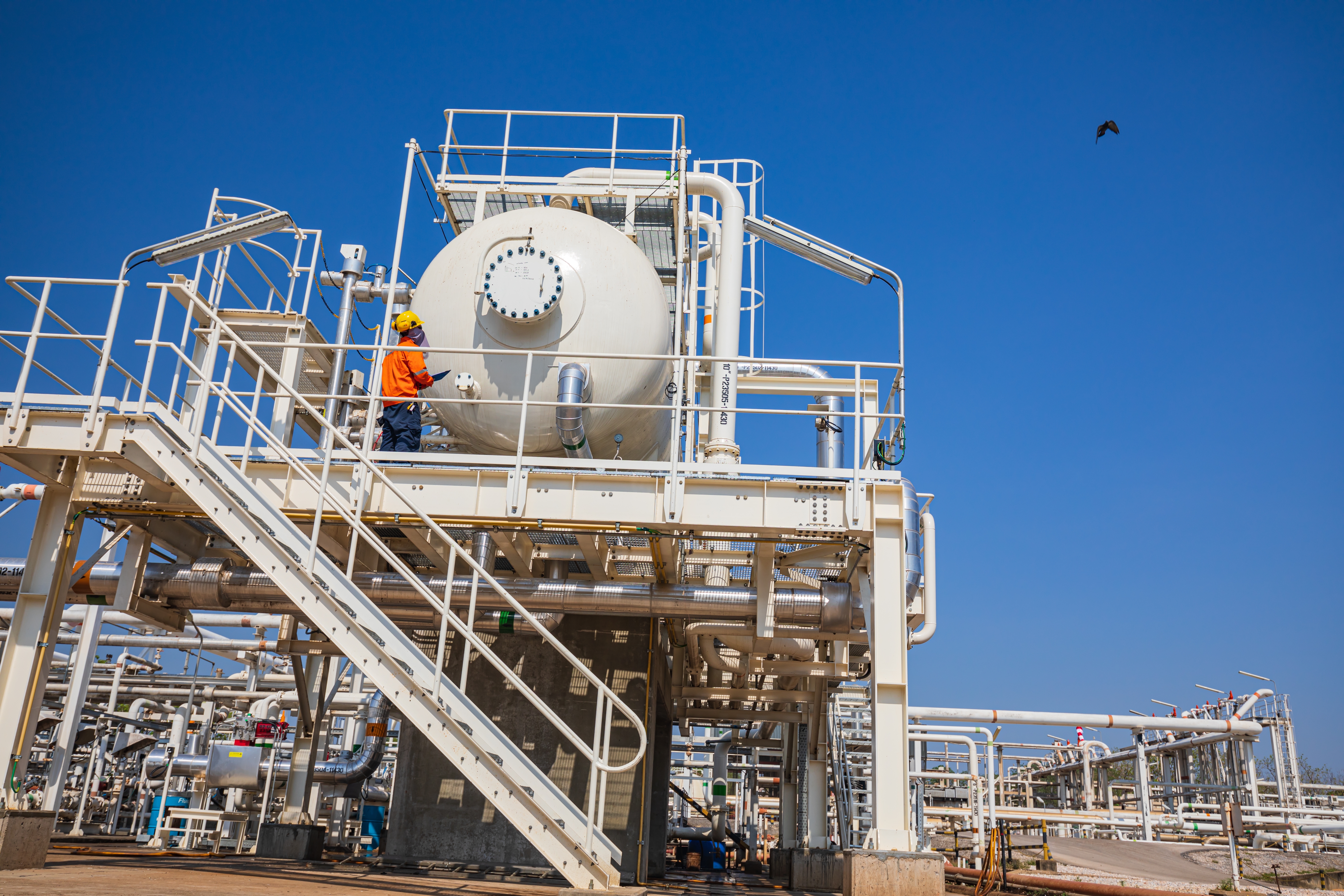

  • API 510: Address service activities such as external & internal inspection intervals, remaining life determination, minimum thickness, maximum allowable pressure and repairs.

Can set up inspection CMLs using our program and can be integrated with Excel so thickness grids can be quickly exchanged between Excel and our program.

  • API 570: Can provide API 570 pipe tmin calculations, and API 579-1 FFS assessments, as allowed by API 570, on various flaws, remaining lifetimes, and inspection intervals.

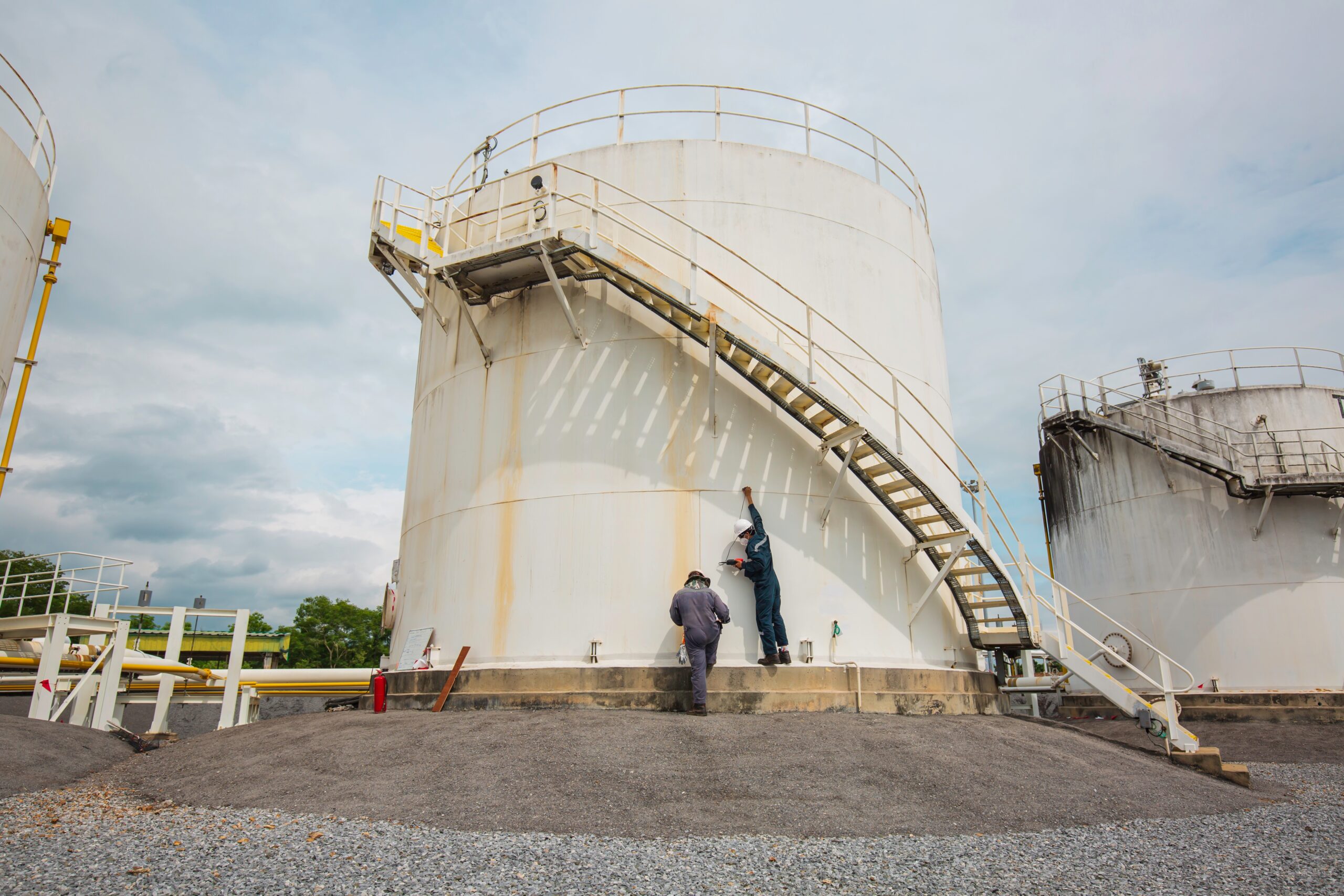

  • API 653: API 653 nozzle assessments, shell out-of-plane settlement evaluations, tank edge settlement evaluations, tank bottom settlement evaluations, minimum remaining thickness calculations, determine tank API 653 remaining life, perform API 579 FFS assessments on storage tanks.
  • Data logger integration makes setting up and retrieving inspection grids from thickness gages fast and easy. Our program’s unique 3D flaw modelling and data logger integration simplifies the API 579-1 flaw assessment workflow.

Document Undocumented Pressure Vessels with our program

  • Missing nameplates, design calculations, drawings and inspection reports make it impossible to determine inspection schedules and show compliance with the PSM standard. We can help you to solve this problem.

MAT – Minimum Allowable Temperature

  • MAT curves are employed to determine which process conditions put equipment at risk of failure by brittle fracture. Because of the number of calculations required, this has historically been an expensive, time-consuming task. Our program automates this  RAGAGEP procedure and shows how process conditions interact with the equipment’s Minimum Allowable Temperature (MAT).

Inspection Data Monitoring System (IDMS)

  • Our program’s built-in 3D inspection data management system can show condition monitoring locations (CMLs) and API 579-1 flaws directly on pressure equipment models. Another key advantage is its ability to customize data tracking to meet your needs quickly.
